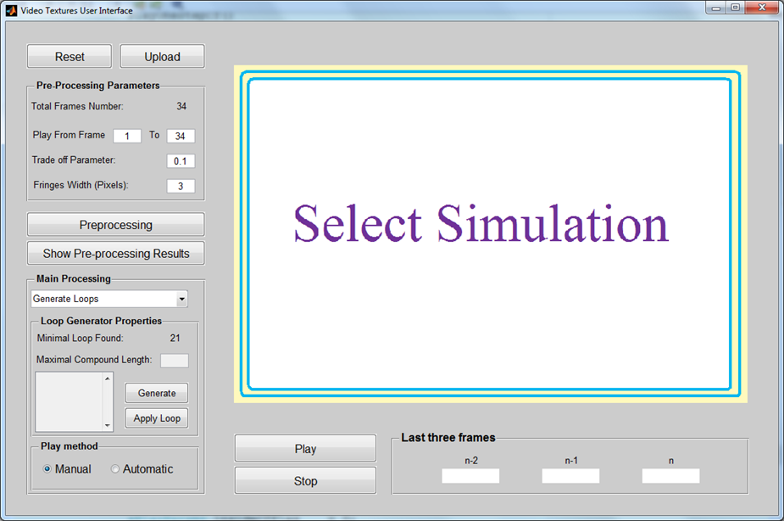

Legend:



1) Reset & Upload buttons:

             Reset the GUI and initiate all off its parameters.

             Upload a new video.



2) Pre-Processing Parameters:

             Static text of Total Frames Number.

             User controlled:

                          Play From Frame __ To __.

                          Trade off Parameter.

                          Fringes Width (Pixels) - adjust the prune triangle limits.



3)Preprocessing button - start the analysis stage.



4) Show Pre-processing Results button - shows the analysis stages as images for

     observation.



5) Main Processing - Choose the processing method.



6) Loop Generator Properties:

             Static text of Minimal Loop Found after processing.

             User controlled:

                          Maximal compound Length of the loops.

                          Generate button for creating these loops.

                          Choose the desired loop length and cost from the appropriate window.

                          Apply Loop button for activating this loop.















7) Play Method:

             Manual - Playing the video by pressing the play button every time.

             Automatic - auto play after pressing one time the play button.



8) Play & Stop buttons:

             Play - Playing the video according to the play method.

             Stop - Stop the video. The user can resume the video by pushing the play

             button.



9) Last three frames - displaying the last three frames of the chosen video.



10) Screen - displaying the video and others instructions for the user.
